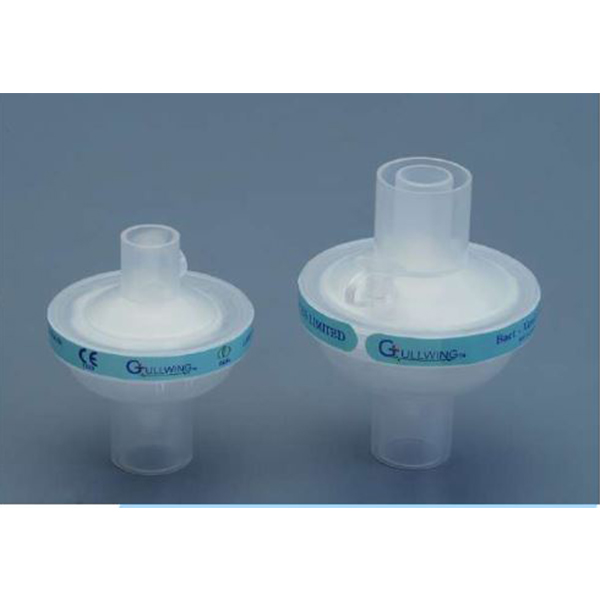

Bacterial Viral Ventilation Filters Adult
MPIN: MP43200
Sign in to view price Ask for Quote
Electrostatic bacterial and viral filters to protect the patient from airborne microorganisms that may be present in inhaled air. It also safe-guards the ventilator and its breathing system from patient exhaled airborne microorganisms which helps reduce the risk of possible cross-infections.
Features:
- Individually packed and ready to use
- Designed for breathing circuits and devices
- Lightweight – Low tractive force on connection
- Biocompatible material
- Transparent casing – allows easy inspection of blockages
- Low dead space – minimizes threat of rebreathing
- High quality filtration media with proven efficiency
- Low flow resistance
- ISO connectors
Specification
| Technical parameters | Adult (Code: 2120) | Paediatric (Code: 2220) |
|---|---|---|
| Filtration efficiency (Bacterial and Viral) | >99.999% | >99.999% |
| Mode of filtration | electrostatic | electrostatic |
| Tidal volume | 250-1000 ml | 75-250 ml |
| Flow resistance | <0.3kpa @60 LPM | <0.2kpa @20 LPM |
| Dead space | <52 ml | <25 ml |
| Connectors | 22M/15F, 15M/22F | 15F/22M, 15M |
| Weight | <30g | <20g |
| Luer lock port for CO2 sampling | Yes | Yes |
